Product image is representative; revision or series may vary. Contact us to request a specific version.

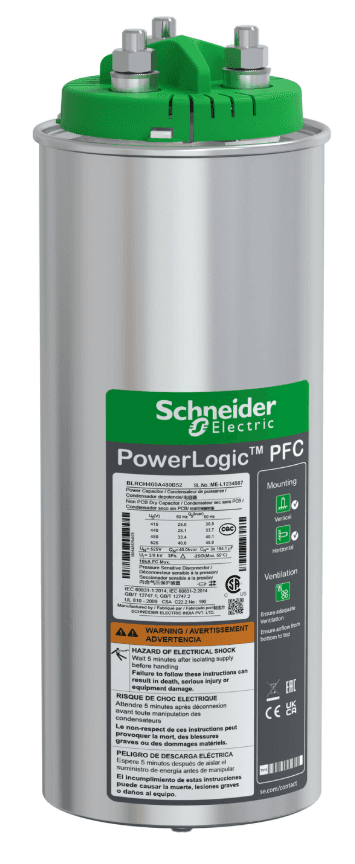

Schneider Electric BLRCH400A480B52
The Schneider Electric BLRCH400A480B52 is a VarPlusCan HDuty PowerLogic PFC heavy duty power capacitor, part of the Schneider Electric General Automation range. It offers a 525 V AC supply, a 50 Hz supply frequency and IP00 protection.
1-Year Warranty
Automation parts backed by our complimentary 1-year warranty.
Automation Specialists
Talk to people who work with this hardware every day and get the right part, not a guess.
Payment Flexibility
Major cards, wire transfer, PO and net terms for businesses.
Repairs & Exchanges
In-house repairs and exchanges across all automation products.
Reseller Options
Drop-shipping, blind shipping and account shipping available.
Not an authorized distributor: PLC Supply is not an authorized distributor for the manufacturers or trademarks listed, and the manufacturer's warranty does not apply. All products come with PLC Supply's 1-year warranty.
Technical specifications for BLRCH400A480B52
| Product family | POWERLOGIC |
|---|---|
| Supply voltage | 525 V AC |
| Degree of protection | IP00 |
| Frequency | 50 Hz |
Description
VarPlusCan HDuty PowerLogic PFC heavy duty power capacitor, three phase. Reactive power 40 kVAr 50 Hz / 48 kVAr 60 Hz . Rated voltage 525 V AC. Dielectric metallized polypropylene film with Zn/Al alloy. Impregnation non PCB dry polyurethane PUR resin. Capacitance tolerance 5 to 10 . Dielectric losses 0.2 W/kVAr power losses 0.5 W/kVAr. Continuous overcurrent capability 1.8 In inrush current up to 250 In. Maximum switching operations per year 7000. Service life approximately 130000 hours. Mounting vertical or horizontal terminal type screw/stud protection class IP00.
Repairs
We repair and refurbish Schneider Electric General Automation units in-house with bench testing and a warranty on every repair. Start a repair.
Frequently asked questions
- What is the Schneider Electric BLRCH400A480B52?
- The BLRCH400A480B52 is a Schneider Electric General Automation part, described by the manufacturer as: VarPlusCan HDuty PowerLogic PFC heavy duty power capacitor, three phase. Reactive power 40 kVAr 50 Hz / 48 kVAr 60 Hz . Rated voltage 525 V AC. Dielectric metallized polypropylene film with Zn/Al alloy. Impregnation non PCB dry polyurethane PUR resin. Capacitance tolerance 5 to 10 . Dielectric losses 0.2 W/kVAr power losses 0.5 W/kVAr. Continuous overcurrent capability 1.8 In inrush current up to 250 In. Maximum switching operations per year 7000. Service life approximately 130000 hours. Mounting vertical or horizontal terminal type screw/stud protection class IP00. We supply it as surplus — new, refurbished or tested used depending on what is available for this part.
- How much does the Schneider Electric BLRCH400A480B52 cost?
- The BLRCH400A480B52 is listed at A$1,163.65 including GST. Send a quote request to confirm the price for your quantity and the lead time before you order.
- What condition is the BLRCH400A480B52 supplied in?
- We supply the Schneider Electric BLRCH400A480B52 as new. Every unit is bench-tested before it ships, whatever its condition, and the options and prices for this part are listed above.
- Does the BLRCH400A480B52 come with a warranty?
- Yes. The Schneider Electric BLRCH400A480B52 is covered by our 1-Year PLC Supply Warranty. We are an independent supplier, not an authorised Schneider Electric distributor, so that is our own warranty rather than the manufacturer's — and it applies to new, refurbished and tested used units alike.
Technical notes
Specifications and images are representative and may vary by revision or series. Confirm firmware and revision requirements with our specialists before ordering.
