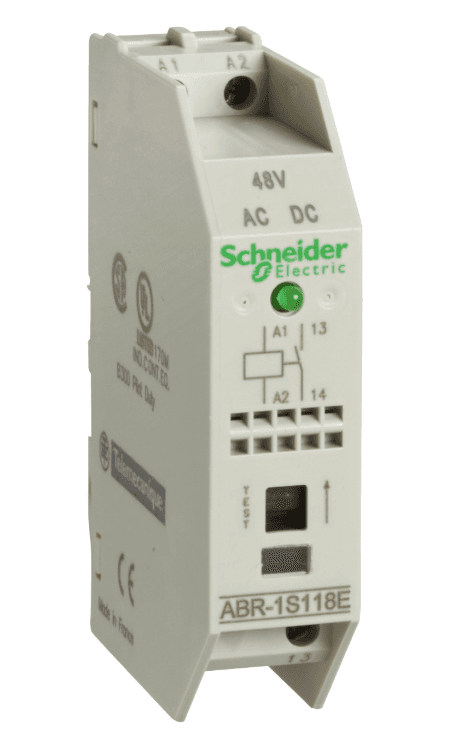

Schneider Electric ABR1S118E
The Schneider Electric ABR1S118E is an Electromechanical output interface module for discrete signals, part of the Schneider Electric Modules range. It offers a 48 V AC/DC supply, 1 A rated current, a 50/60 Hz supply frequency and IP20 protection.
1-Year Warranty
Automation parts backed by our complimentary 1-year warranty.
Automation Specialists
Talk to people who work with this hardware every day and get the right part, not a guess.
Payment Flexibility
Major cards, wire transfer, PO and net terms for businesses.
Repairs & Exchanges
In-house repairs and exchanges across all automation products.
Reseller Options
Drop-shipping, blind shipping and account shipping available.
Not an authorized distributor: PLC Supply is not an authorized distributor for the manufacturers or trademarks listed, and the manufacturer's warranty does not apply. All products come with PLC Supply's 1-year warranty.
Technical specifications for ABR1S118E
| Supply voltage | 48 V AC/DC |
|---|---|
| Rated current | 1 A |
| Degree of protection | IP20 |
| Mounting | DIN rail |
| Frequency | 50/60 Hz |
Description
Electromechanical output interface module for discrete signals width 17.5 mm 1 NO contact control circuit voltage 48 V AC/DC control frequency 50/60 Hz rated operational current 1 A AC 13/AC 14 Ue 230 V , 1 A DC 13 Ue 24 V , 4 A AC 12 Ue 230 V , 5 A DC 12 Ue 24 V conventional free air thermal current Ith 12 A maximum switching voltage 125 V DC minimum switching current 3 mA screw clamp terminals mechanical contact position indicator and green LED DIN rail mounting IP20.
Repairs
We repair and refurbish Schneider Electric Modules units in-house with bench testing and a warranty on every repair. Start a repair.
Frequently asked questions
- What is the Schneider Electric ABR1S118E?
- The ABR1S118E is a Schneider Electric Modules part, described by the manufacturer as: Electromechanical output interface module for discrete signals width 17.5 mm 1 NO contact control circuit voltage 48 V AC/DC control frequency 50/60 Hz rated operational current 1 A AC 13/AC 14 Ue 230 V , 1 A DC 13 Ue 24 V , 4 A AC 12 Ue 230 V , 5 A DC 12 Ue 24 V conventional free air thermal current Ith 12 A maximum switching voltage 125 V DC minimum switching current 3 mA screw clamp terminals mechanical contact position indicator and green LED DIN rail mounting IP20. We supply it as surplus — new, refurbished or tested used depending on what is available for this part.
- How much does the Schneider Electric ABR1S118E cost?
- The ABR1S118E is listed at A$372.81 including GST. Send a quote request to confirm the price for your quantity and the lead time before you order.
- What condition is the ABR1S118E supplied in?
- We supply the Schneider Electric ABR1S118E as new. Every unit is bench-tested before it ships, whatever its condition, and the options and prices for this part are listed above.
- Does the ABR1S118E come with a warranty?
- Yes. The Schneider Electric ABR1S118E is covered by our 1-Year PLC Supply Warranty. We are an independent supplier, not an authorised Schneider Electric distributor, so that is our own warranty rather than the manufacturer's — and it applies to new, refurbished and tested used units alike.
Technical notes
Specifications and images are representative and may vary by revision or series. Confirm firmware and revision requirements with our specialists before ordering.
