Product image is representative; revision or series may vary. Contact us to request a specific version.

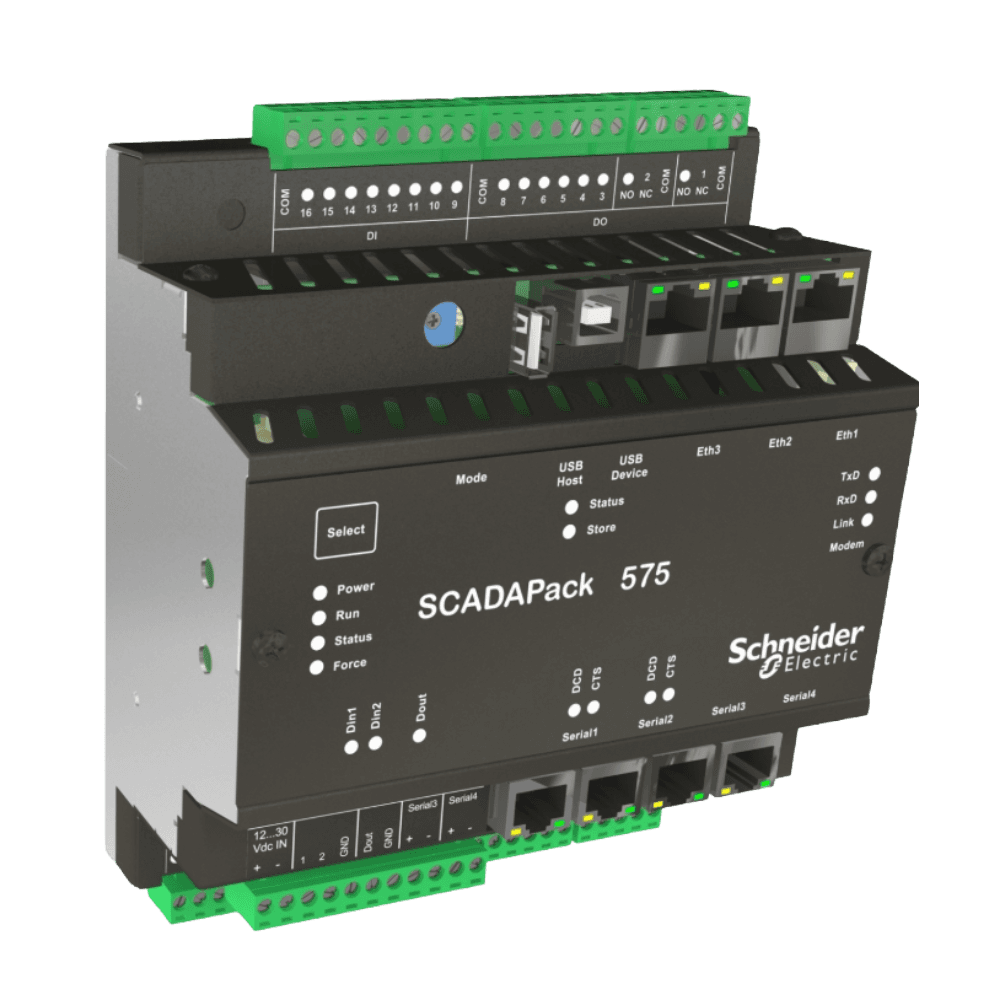

Schneider Electric TBUP575-UA56-AB10S
The Schneider Electric TBUP575-UA56-AB10S is a SCADAPack 575 Smart RTU model TBUP575 UA56 AB10S 32 bit dual, part of the Schneider Electric Modules range. It offers a 30 V DC supply, Modbus, USB connectivity, Chassis mounting and dimensions of 182 × 151 × 87 mm.
1-Year Warranty
Automation parts backed by our complimentary 1-year warranty.
Fast Shipping
Fast domestic and international shipping.
Payment Flexibility
Major cards, wire transfer, PO and net terms for businesses.
Repairs & Exchanges
In-house repairs and exchanges across all automation products.
Reseller Options
Drop-shipping, blind shipping and account shipping available.
Not an authorized distributor: PLC Supply is not an authorized distributor for the manufacturers or trademarks listed, and the manufacturer's warranty does not apply. All products come with PLC Supply's 1-year warranty.
Technical specifications for TBUP575-UA56-AB10S
| Supply voltage | 30 V DC |
|---|---|
| Dimensions (H×W×D) | 182 × 151 × 87 mm |
| Interface / protocol | Modbus, USB |
| Mounting | Chassis |
Description
SCADAPack 575 Smart RTU model TBUP575 UA56 AB10S 32 bit dual core remote telemetry/controller with SCADAPack x70 firmware. I/O 18 digital inputs 10 with counter capability , 6 analog inputs software configurable 0 20 mA / 4 20 mA / 0 5 V / 0 10 V where applicable , 9 digital outputs dry contact relays/solid state options depending on module , 2 analog outputs 0 20 mA / 4 20 mA, external DC supply required . Communications DNP3 incl. Secure Authentication v2 , Modbus RTU/TCP, TCP/IP, IEC 60870 5 104 USB 2.0 host port. Power 12 30 Vdc external supply typical current draw 50 mA for AO power . Isolation channel to logic and chassis isolation per device specs. Dimensions approx. 182 x 151 x 87 mm representative mass 1.167 kg. Expandable via SCADAPack expansion I/O modules 5000/6000 series .
Repairs
We repair and refurbish Schneider Electric Modules units in-house with bench testing and a warranty on every repair. Start a repair.
Frequently asked questions
- What is the Schneider Electric TBUP575-UA56-AB10S?
- The TBUP575-UA56-AB10S is a Schneider Electric Modules part, described by the manufacturer as: SCADAPack 575 Smart RTU model TBUP575 UA56 AB10S 32 bit dual core remote telemetry/controller with SCADAPack x70 firmware. I/O 18 digital inputs 10 with counter capability , 6 analog inputs software configurable 0 20 mA / 4 20 mA / 0 5 V / 0 10 V where applicable , 9 digital outputs dry contact relays/solid state options depending on module , 2 analog outputs 0 20 mA / 4 20 mA, external DC supply required . Communications DNP3 incl. Secure Authentication v2 , Modbus RTU/TCP, TCP/IP, IEC 60870 5 104 USB 2.0 host port. Power 12 30 Vdc external supply typical current draw 50 mA for AO power . Isolation channel to logic and chassis isolation per device specs. Dimensions approx. 182 x 151 x 87 mm representative mass 1.167 kg. Expandable via SCADAPack expansion I/O modules 5000/6000 series . We supply it as surplus — new, refurbished or tested used depending on what is available for this part.
- How much does the Schneider Electric TBUP575-UA56-AB10S cost?
- The TBUP575-UA56-AB10S is listed at A$7,032.93 including GST. Send a quote request to confirm the price for your quantity and the lead time before you order.
- What condition is the TBUP575-UA56-AB10S supplied in?
- We supply the Schneider Electric TBUP575-UA56-AB10S as new. Every unit is bench-tested before it ships, whatever its condition, and the options and prices for this part are listed above.
- Does the TBUP575-UA56-AB10S come with a warranty?
- Yes. The Schneider Electric TBUP575-UA56-AB10S is covered by our 1-Year PLC Supply Warranty. We are an independent supplier, not an authorised Schneider Electric distributor, so that is our own warranty rather than the manufacturer's — and it applies to new, refurbished and tested used units alike.
Technical notes
Specifications and images are representative and may vary by revision or series. Confirm firmware and revision requirements with our specialists before ordering.
