Product image is representative; revision or series may vary. Contact us to request a specific version.

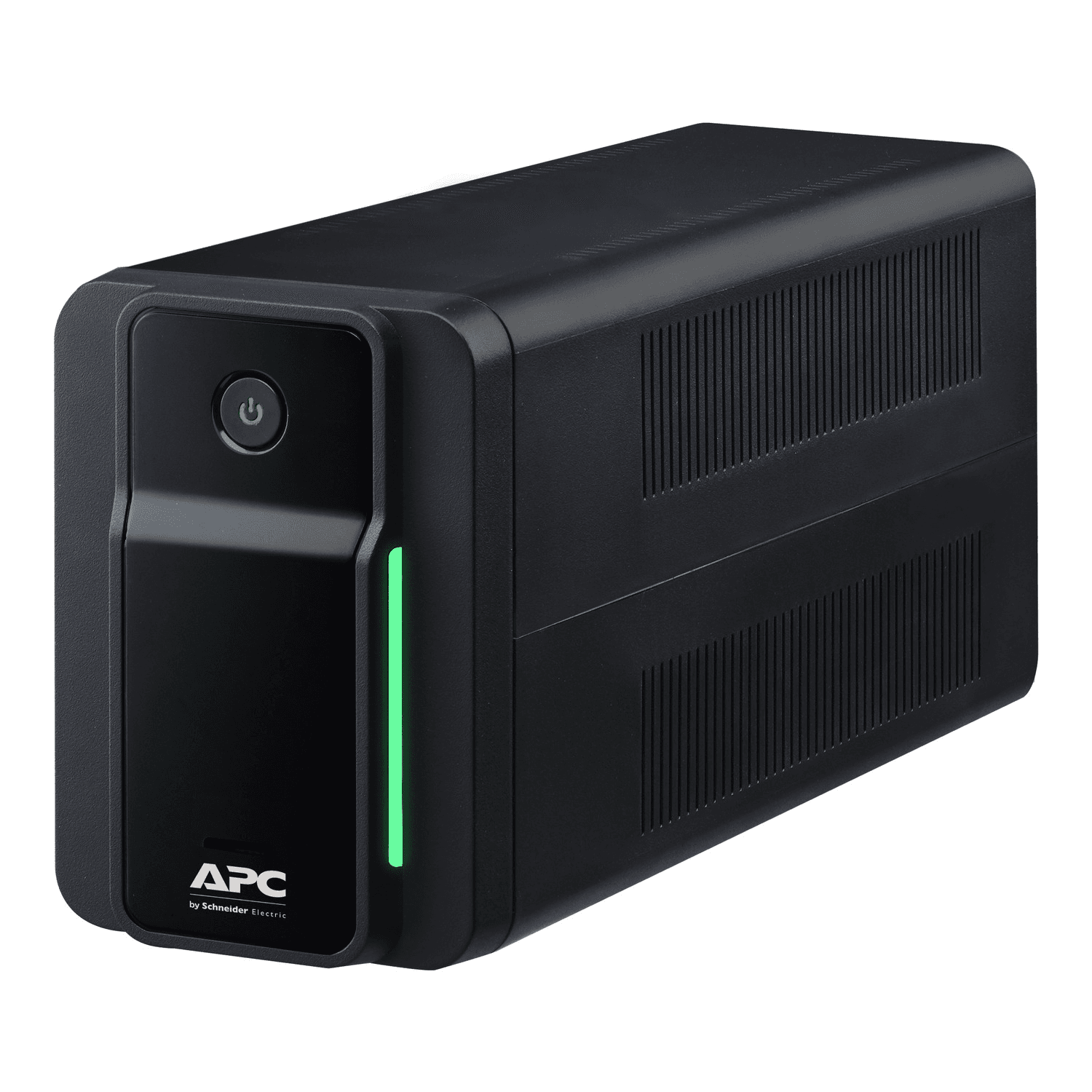

Schneider Electric BX500MI APC
The Schneider Electric BX500MI APC is a Back UPS, part of the Schneider Electric Power Supply range. It offers 300 W rated power, 230 V rated, a 50/60 Hz supply frequency and IP20 protection.
1-Year Warranty
Automation parts backed by our complimentary 1-year warranty.
Automation Specialists
Talk to people who work with this hardware every day and get the right part, not a guess.
Payment Flexibility
Major cards, wire transfer, PO and net terms for businesses.
Repairs & Exchanges
In-house repairs and exchanges across all automation products.
Reseller Options
Drop-shipping, blind shipping and account shipping available.
Not an authorized distributor: PLC Supply is not an authorized distributor for the manufacturers or trademarks listed, and the manufacturer's warranty does not apply. All products come with PLC Supply's 1-year warranty.
Technical specifications for BX500MI APC
| Rated voltage | 230 V |
|---|---|
| Degree of protection | IP20 |
| Rated power | 300 W |
| Frequency | 50/60 Hz |
Description
Back UPS, line interactive uninterruptible power supply UPS Output capacity 500 VA / 300 W Input 230 V auto sensing operating range 140 300 V , 50/60 Hz Topology line interactive with Automatic Voltage Regulation AVR Output connections 3 IEC 60320 C13 Battery sealed lead acid 12 V, 7 Ah replacement APCRBC110 Typical recharge time 8 h Transfer time 6 ms typical, 10 ms max Certifications CE, EAC, EN/IEC 62040 1 Protection class IP20.
Repairs
We repair and refurbish Schneider Electric Power Supply units in-house with bench testing and a warranty on every repair. Start a repair.
Frequently asked questions
- What is the Schneider Electric BX500MI APC?
- The BX500MI APC is a Schneider Electric Power Supply part, described by the manufacturer as: Back UPS, line interactive uninterruptible power supply UPS Output capacity 500 VA / 300 W Input 230 V auto sensing operating range 140 300 V , 50/60 Hz Topology line interactive with Automatic Voltage Regulation AVR Output connections 3 IEC 60320 C13 Battery sealed lead acid 12 V, 7 Ah replacement APCRBC110 Typical recharge time 8 h Transfer time 6 ms typical, 10 ms max Certifications CE, EAC, EN/IEC 62040 1 Protection class IP20. We supply it as surplus — new, refurbished or tested used depending on what is available for this part.
- How much does the Schneider Electric BX500MI APC cost?
- The BX500MI APC is listed at A$330.94 including GST. Send a quote request to confirm the price for your quantity and the lead time before you order.
- What condition is the BX500MI APC supplied in?
- We supply the Schneider Electric BX500MI APC as new. Every unit is bench-tested before it ships, whatever its condition, and the options and prices for this part are listed above.
- Does the BX500MI APC come with a warranty?
- Yes. The Schneider Electric BX500MI APC is covered by our 1-Year PLC Supply Warranty. We are an independent supplier, not an authorised Schneider Electric distributor, so that is our own warranty rather than the manufacturer's — and it applies to new, refurbished and tested used units alike.
Technical notes
Specifications and images are representative and may vary by revision or series. Confirm firmware and revision requirements with our specialists before ordering.
